Electricity from tides

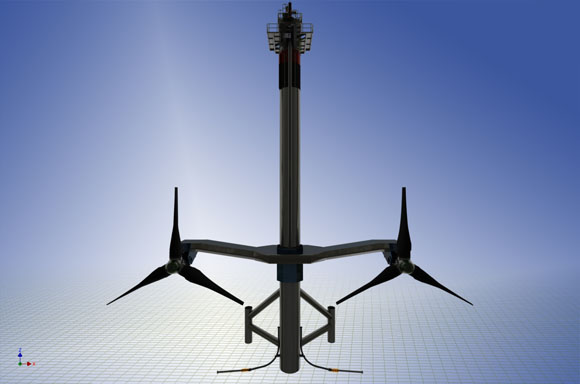

Source of the photo
http://www.marineturbines.com/SeaGen-Products/SeaGen-S
Author of the description
GK

Production of electricity from  tides is an option today. About twice a day in high as well as low tides, water flows in and out of coasts and estuaries. This water can spin turbines, in order to produce electricity. But analysts have been taking a closer look at this form of energy supply and they believe that tidal power can only make a tiny contribution to the world's energy supply, because of the few suitable sites, the high construction costs and the risk of equipment destruction by saltwater corrosion. However, there are a few areas with the right conditions to produce tidal power. France and Canada own the largest tidal energy facilities right now.

Special buoys, turbines, and other technologies can capture the power of waves and tides and convert it into clean, pollution-free electricity. Like other renewable resources, both wave and tidal energy are variable in nature. Waves are produced by winds blowing across the surface of the ocean. However, because waves travel across the ocean, their arrival time at the wave power facility may be more predictable than wind. In contrast, tidal energy, which is driven by the gravitational pull of the moon and sun, is predictable centuries in advance.

The technologies needed to generate electricity from wave and tidal energy are at a nascent stage, but the first commercial projects are currently under development, including some in the Pacific Northwest. Like most emerging energy technologies, wave and tidal technologies are currently more expensive than traditional generating resources, but with further experience in the field, adequate R&D funding, and proactive public policy support, the costs of wave and tidal technologies are expected to fol-low the same rapid decrease in price that wind energy has experienced.
Worldwide potential for wave and tidal power is enormous, however, local geography greatly influences the electricity generation potential of each technology. Wave energy resources are best between 30º and 60º latitude in both hemispheres, and the potential tends to be the greatest on western coasts.

The United States receives 2,100 terawatt-hours of incident wave energy along its coastlines each year, and tapping just one quarter of this potential could produce as much energy as the entire U.S. hydropower system. Oregon and Washington have the strongest wave energy resource in the lower 48 states and could eventually generate several thousand megawatts of electricity using wave resources. Several sites in Washington’s Puget Sound with excellent tidal resources could be developed, potentially yielding several hundred megawatts of tidal power

While no commercial wave or tidal projects have yet been developed in the United States, several projects are planned for the near future, including projects in the Northwest. AquaEnergy Group, Ltd is currently designing and permitting a one-megawatt demonstration wave power plant at Makah Bay, Washington. Ocean Power Technologies has received a preliminary permit to explore construction of North America’s first utility-scale wave energy facility off the coast of Reedsport, Oregon. With the support of the Oregon Department of Energy, Oregon State University is also seeking funding to build a national wave en-ergy research facility near Newport, Oregon. Several tidal power projects are also being explored in the region. Tacoma Power has secured a preliminary permit to explore a tidal power project at the Tacoma Narrows, one of the best locations for tidal power in the country, and Snohomish County Public Utility District has received preliminary permits for seven other potential tidal power sites in the Puget Sound

Wave Energy Technologies
There are three main types of wave energy technologies. One type uses floats, buoys, or pitching devices to generate electricity using the rise and fall of ocean swells to drive hydraulic pumps. A second type uses oscillating water column (OWC)devices to generate electricity at the shore using the rise and fall of water within a cylindrical shaft. The rising water drives air out of the top of the shaft, powering an air-driven turbine. Third, a tapered channel, or overtoppingdevice can be located either on or offshore. They concentrate waves and drive them into an elevated reservoir, where power is then generated using hydropower turbines as the water is released. The vast majority of recently proposed wave energy projects would use offshore floats, buoys or pitching devices.

The world’s first commercial offshore wave energy facility will begin operating by the end of 2007 off the Atlantic coast of Portugal. The first phase of the project, which Scottish company, Ocean Power Delivery (OPD) developed, features three ‘Pelamis’ wave energy conversion devices and generates a combined 2.25 MW of electricity. OPD plans to expand the facility to produce 22.5 MW in 2007.
Until recently, the common model for tidal power facilities involved erecting a tidal dam, or barrage, with a sluice across a narrow bay or estuary. As the tide flows in or out, creating uneven water levels on either side of the barrage, the sluice is opened and water flows through low-head hydro turbines to generate electricity. For a tidal barrage to be feasible, the difference between high and low tides must be at least 16 feet. La Rance Station in France, the world’s first and still largest tidal barrage, has a rated capacity of 260 MW and has operated since 1966. However, tidal barrages, have several environmental drawbacks, including changes to marine and shoreline ecosystems, most notably fish populations.

Several other models for tidal facilities have emerged in recent years, including tidal lagoons, tidal fences, and underwater tidal turbines, but none are commercially operating. Perhaps the most promising is the underwater tidal turbine. Several tidal power companies have developed tidal turbines, which are similar in many ways to wind turbines. These turbines would be placed offshore or in estuaries in strong tidal currents where the tidal flow spins the turbines, which then generate electricity. Tidal turbines would be deployed in underwater ‘farms’ in waters 60-120 feet deep with currents exceeding 5-6 mph. Because water is much denser than air, tidal turbines are smaller than wind turbines and can produce more electricity in a given area. A pilot-scale tidal turbine facility – the first in North America – was installed in New York’s East River in December 2006. The developer, Verdant Power, hopes to eventually install a 10 MW tidal farm at the site.
Environmental Impacts
Unlike fossil-fueled power plants, wave and tidal energy facilities generate electricity without producing any pollutant emissions or greenhouse gases. Since the first wave and tidal energy facilities are currently being deployed, the full environmental impacts of wave and tidal power remain uncertain but are projected to be small. Concerns include impacts on marine ecosystems and fisheries. Environmental impact studies are currently underway and several pilot and commercial projects are undergoing environmental monitoring. The East River tidal turbine pilot project includes a $1.5 million sonar system to monitor impacts on fish populations, for example. Careful siting should minimize impacts on marine ecosystems, fishing and other coastal economic activities. Wave and tidal facilities also have little or no visual impact, as they are either submerged or do not rise very far above the waterline.
